Product info
-
Technical data

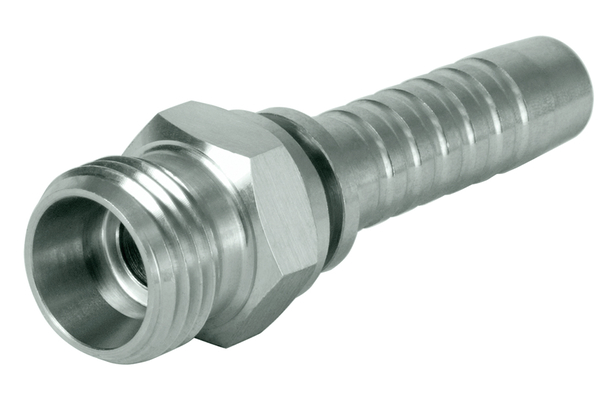

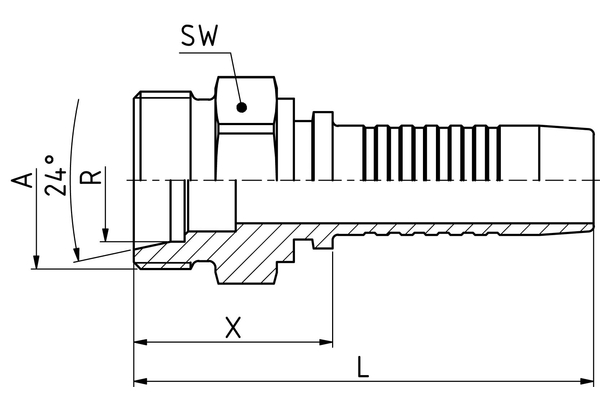

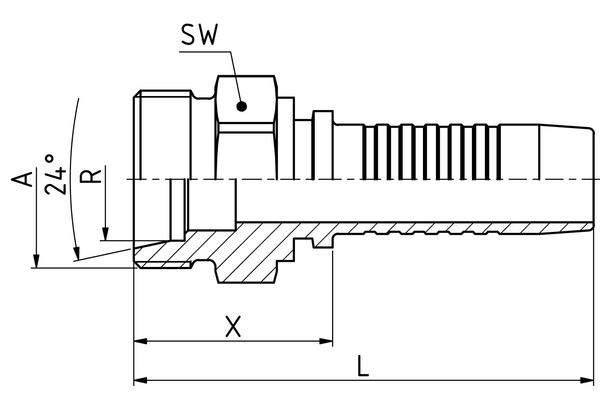

DN: 10 Size: 06 Inch: 3/8 Thread + standard: Threaded stem with bore form W (24 °) according to DIN 3861, heavy series Connection thread A: M20x1,5 X [mm]: 27,5 L1 [mm]: 61,0 SW1 [mm]: 22 Connection name Indunorm: ME Connection type: CES Construction form: 0° Material: Free cutting steel Surface: ZnNi Type of fittings: Universal series XV
