Product info
-
Technical data

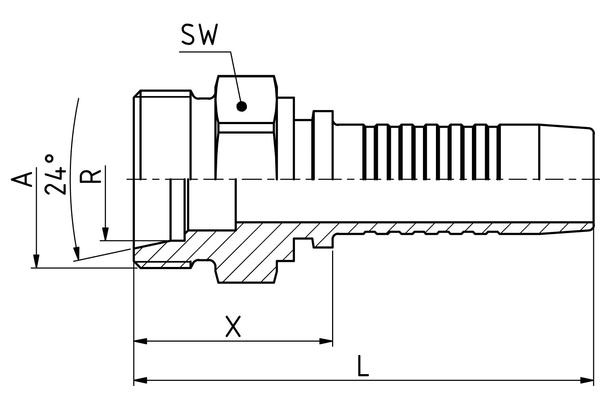

DN: 12 Size: 08 Inch: 1/2 Thread + standard: Threaded stem with bore form W (24 °) according to DIN 3861, heavy series Connection thread A: M24x1,5 Pipe Ø R [mm]: 16 X [mm]: 30,0 L1 [mm]: 65,5 SW1 [mm]: 24 Connection name Indunorm: ME Connection type: CES Construction form: 0° Material: Free cutting steel Surface: ZnNi Type of fittings: Universal series XV
