XV36ME25-10
CES ME

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8

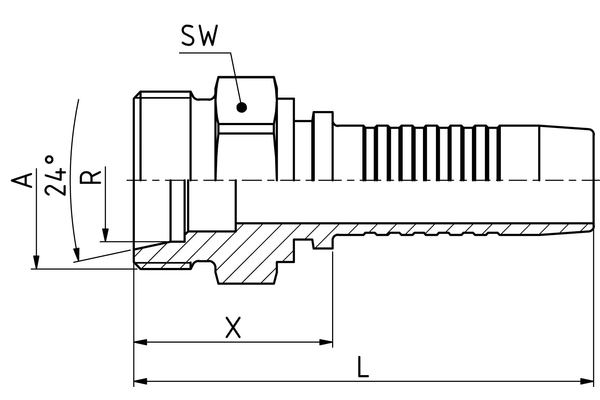

  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
  Connection thread A:	M36x2
  Pipe Ø R [mm]:	25
  X [mm]:	37,0
  L1 [mm]:	75,5
  SW1 [mm]:	36
  Connection name Indunorm:	ME
  Connection type:	CES
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
