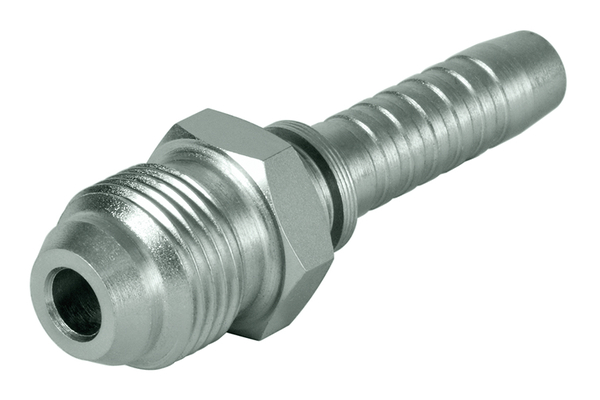

XV16MJM06
Komatsu with metric male thread

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8

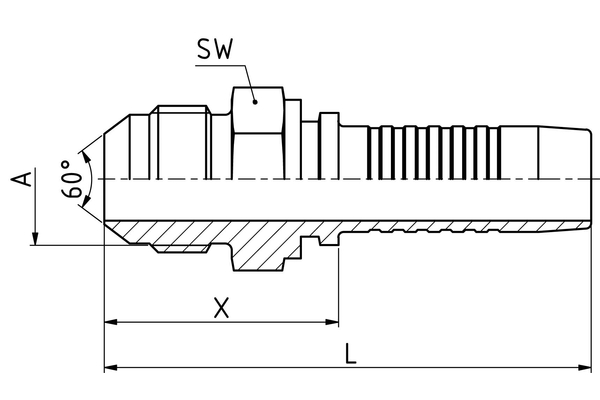

  Thread + standard:	Komatsu-threaded adapter, 60 ° sealing cone with metric male thread
  Connection thread A:	M16x1,5
  X [mm]:	30,6
  L1 [mm]:	69,1
  SW1 [mm]:	17
  Connection name Indunorm:	MJM
  Connection type:	Komatsu with metric male thread
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
