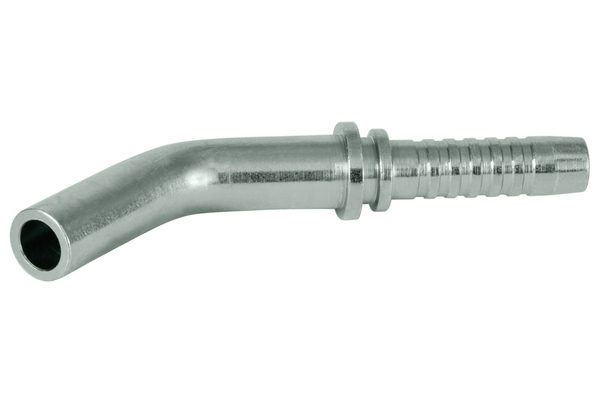

XV06MOSE45S04
BEL 45° MOSE 45°

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut, light series

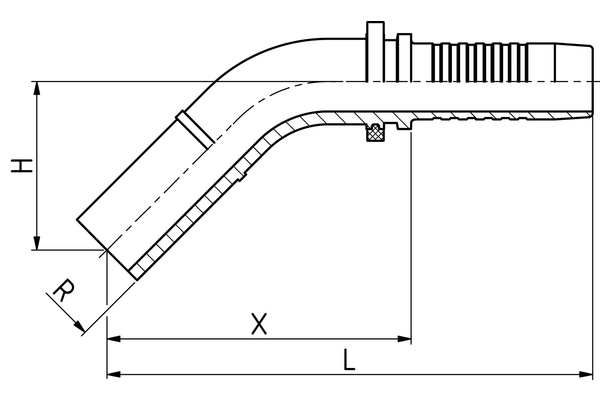

  Pipe Ø R [mm]:	6
  X [mm]:	49,0
  L1 [mm]:	79,0
  H [mm]:	19,0
  Connection name Indunorm:	MOSE 45°
  Connection type:	BEL 45° RSL
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
