BES/RSS - Pipe socket

Similar image
Similar image

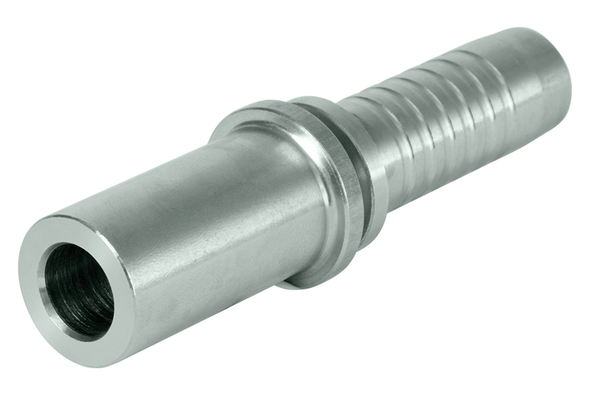

Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series

To accessories

Detail

Art. No.
XV08MOSE03
%
SALE
XV10MOSE04
%
SALE
XV12MOSE04
%
SALE
XV12MOSE05
%
SALE
XV14MOSE06
%
SALE
XV16MOSE06
%
SALE
XV16MOSE08
%
SALE
XV25MOSE12
%
SALE
XV25MOSE16
%
SALE
XV38MOSE20
%
SALE
DN
05
06
06
08
10
10
12
19
25
31
Size
03
04
04
05
06
06
08
12
16
20
Inch
3/16
1/4
1/4
5/16
3/8
3/8
1/2
3/4
1
1.1/4
Thread + standard
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series

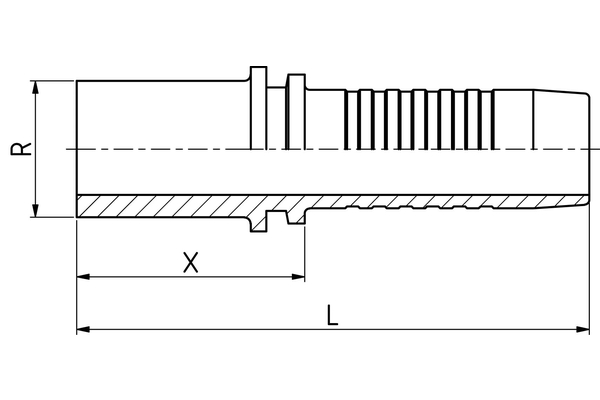

Pipe Ø R [mm]
8
10
12
12
14
16
16
25
25
38
X [mm]
30,1
33,3
33,3
33,8
36,3
37,2
38,5
48,5
40,6
58,5
L1 [mm]
55,0
63,5
63,5
64,0
69,8
70,7
74,0
94,5
95,8
118,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MOSE
    Connection type: BES RSS
    Construction form: 0°
    Material: Free cutting steel
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV

Practical tip

The pre-assembly of the cutting ring should be carried out using the hardened pre-assembly socket RV..VM L / S. For assembling cutting rings properly, please refer to our installation instructions.
