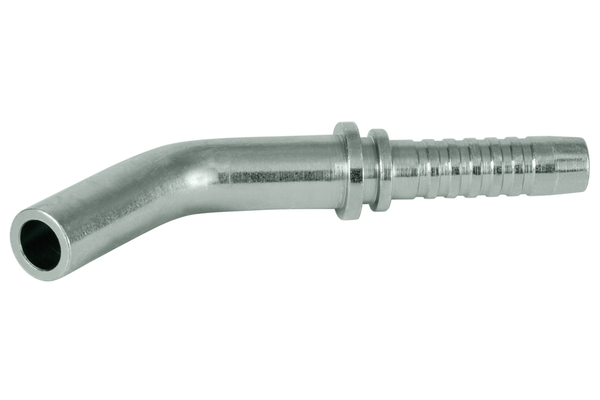

XV14MOSE45S06
BES 45° MOSE 45°

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series

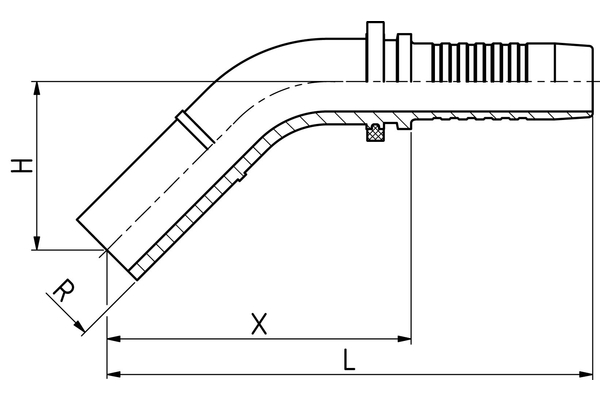

  Pipe Ø R [mm]:	14
  X [mm]:	53,0
  L1 [mm]:	86,5
  H [mm]:	27,0
  Connection name Indunorm:	MOSE 45°
  Connection type:	BES 45° RSS
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
