XV12SFH45S12
SFL 3.000 PSI 45° SFH 45°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
  Flange size D2:	3/4"

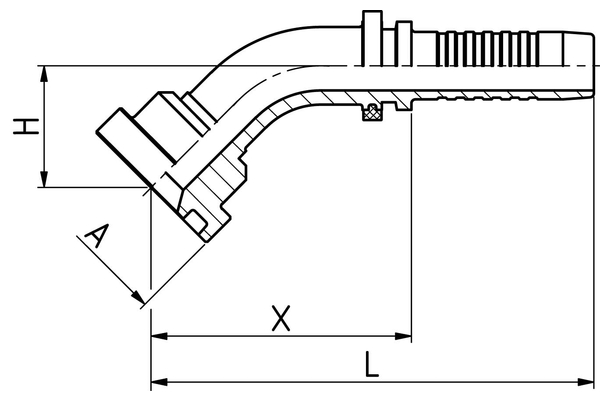

  X [mm]:	62,5
  L1 [mm]:	108,5
  H [mm]:	30,0
  D2 [mm]:	38,1
  Connection name Indunorm:	SFH 45°
  Connection type:	SFL 3000 PSI 45°
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
