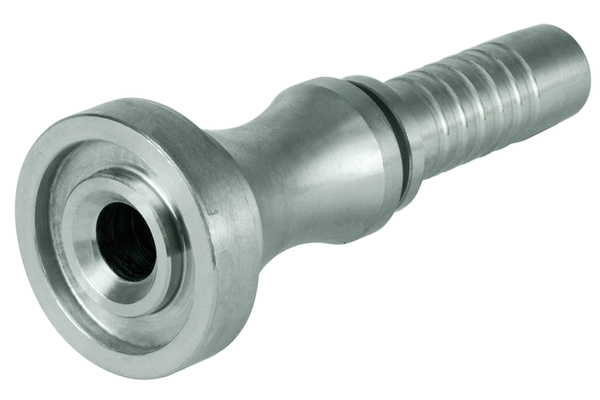

XV12SFH08
SFL 3.000 PSI SFH

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
  Flange size D2:	3/4"
  X [mm]:	42,5
  L1 [mm]:	78,0
  D2 [mm]:	38,1
  Connection name Indunorm:	SFH
  Connection type:	SFL 3000 PSI
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
