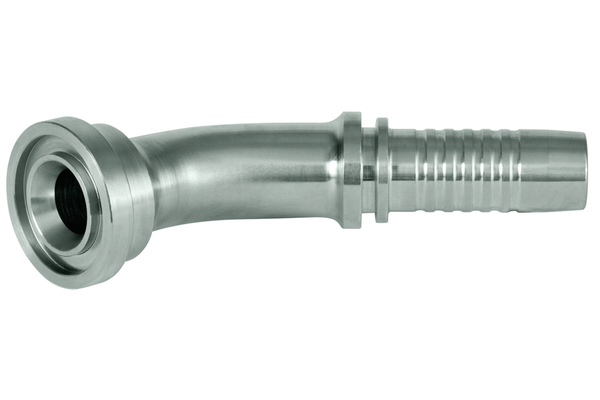

XV16SFH6-45S12
SFS 6.000 PSI 45° SFH 6 - 45°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  working pressure [bar]:	413
  Thread + standard:	Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
  Flange size D2:	1"

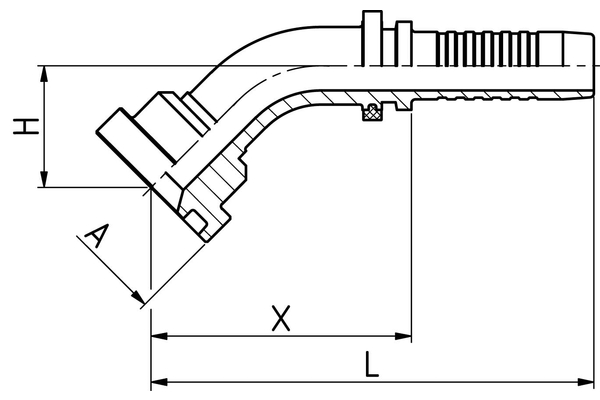

  X [mm]:	64,2
  L1 [mm]:	114,0
  H [mm]:	30,5
  D2 [mm]:	47,6
  Connection name Indunorm:	SFH 6 - 45°
  Connection type:	SFS 6000 PSI 45°
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
