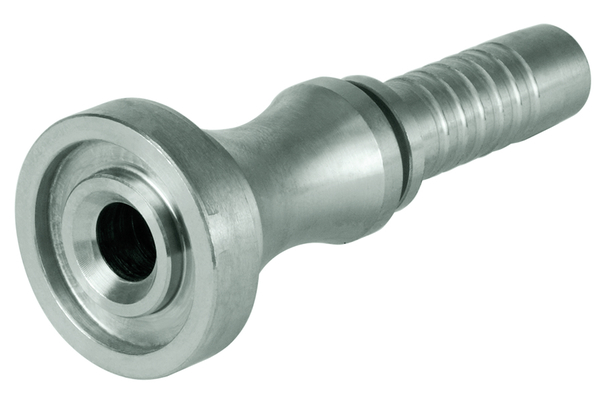

XV08SFH6-10
SFS 6.000 PSI SFH 6

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  working pressure [bar]:	413
  Thread + standard:	Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
  Flange size D2:	1/2"
  X [mm]:	51,5
  L1 [mm]:	90,0
  D2 [mm]:	31,8
  Connection name Indunorm:	SFH 6
  Connection type:	SFS 6000 PSI
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
