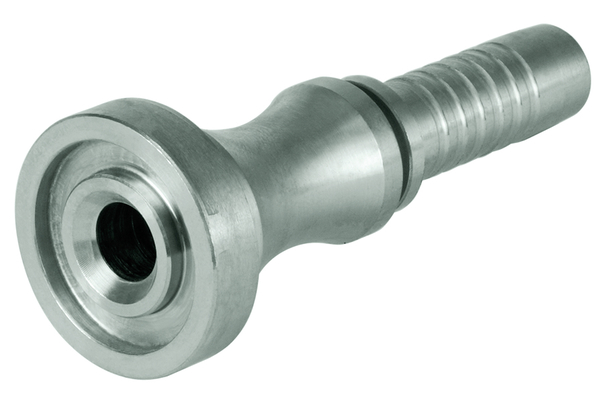

XV12SFH6-08
SFS 6.000 PSI SFH 6

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	413
  Thread + standard:	Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
  Flange size D2:	3/4"

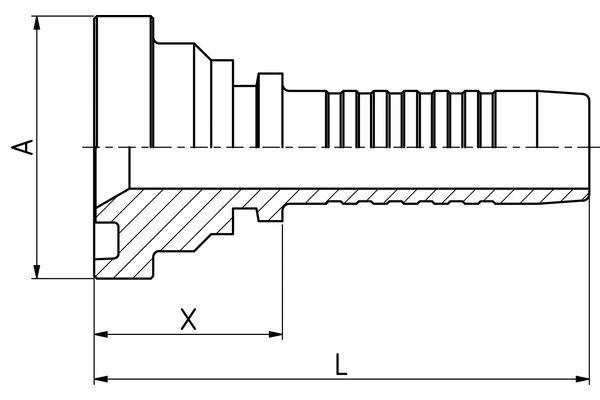

  X [mm]:	49,0
  L1 [mm]:	84,5
  D2 [mm]:	41,3
  Connection name Indunorm:	SFH 6
  Connection type:	SFS 6000 PSI
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
