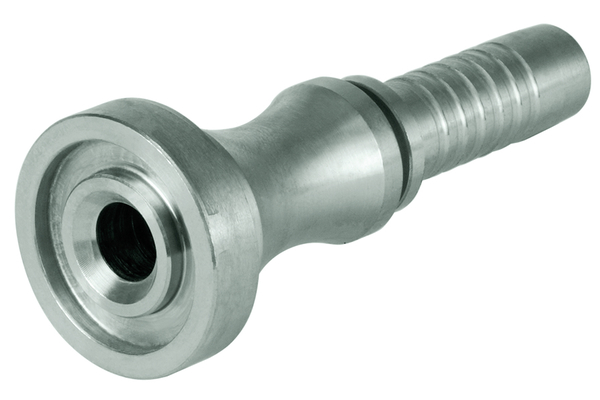

XV16SFH6-10
SFS 6.000 PSI SFH 6

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  working pressure [bar]:	413
  Thread + standard:	Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
  Flange size D2:	1"
  X [mm]:	46,5
  L1 [mm]:	85,0
  D2 [mm]:	47,6
  Connection name Indunorm:	SFH 6
  Connection type:	SFS 6000 PSI
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
