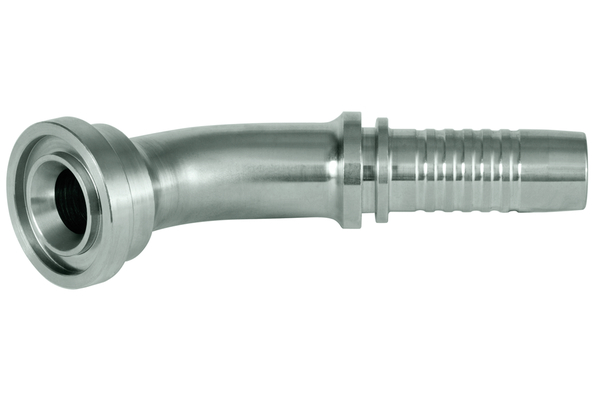

XV12SFH9-45S12
SFS CAT 45° SFH 9 - 45°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  working pressure [bar]:	413
  Thread + standard:	Flange head (CAT) high pressure series
  Flange size D2:	3/4"
  X [mm]:	73,8
  L1 [mm]:	119,8
  H [mm]:	40,4
  D2 [mm]:	38,1
  Connection name Indunorm:	SFH 9 - 45°
  Connection type:	SFS CAT 45°
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
