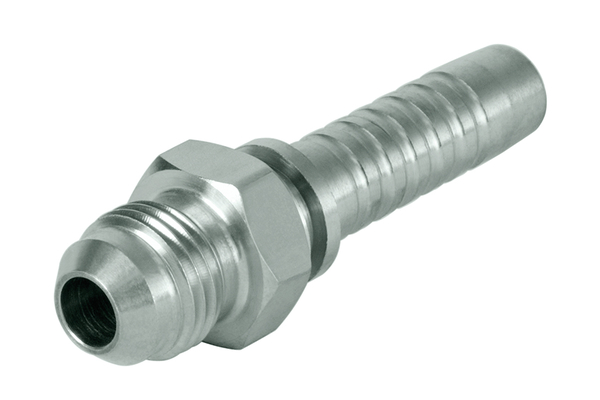

XV08JM06
AGJ JM

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	JIC threaded adapter, 74 ° cone with UN / UNF thread
  Connection thread A:	1/2"-20 UNF
  X [mm]:	28,8
  L1 [mm]:	62,3
  SW1 [mm]:	14
  Connection name Indunorm:	JM
  Connection type:	AGJ
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
