Product info
-
Technical data

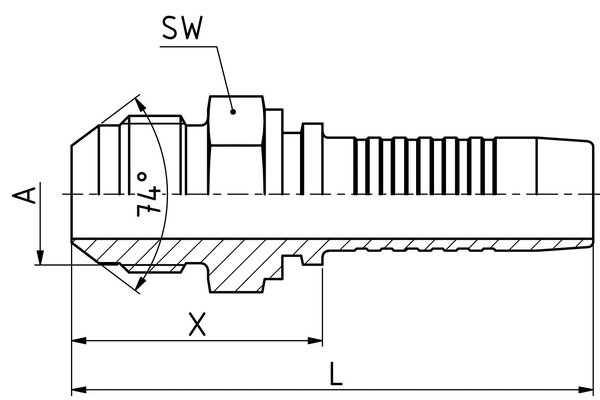

DN: 16 Size: 10 Inch: 5/8 Thread + standard: JIC threaded adapter, 74 ° cone with UN / UNF thread Connection thread A: 7/8"-14 UNF X [mm]: 35,5 L1 [mm]: 74,0 SW1 [mm]: 24 Connection name Indunorm: JM Connection type: AGJ Construction form: 0° Material: Free cutting steel Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: Zinc-Nickel Type of fittings: Universal series XV
