Product info
-
Technical data

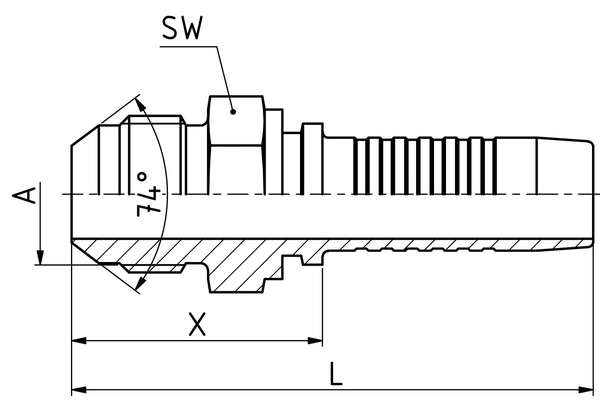

DN: 19 Size: 12 Inch: 3/4 Thread + standard: JIC threaded adapter, 74 ° cone with UN / UNF thread Connection thread A: 1.1/16"-12 UN X [mm]: 40,7 L1 [mm]: 85,0 SW1 [mm]: 27 Connection name Indunorm: JM Connection type: AGJ Construction form: 0° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
