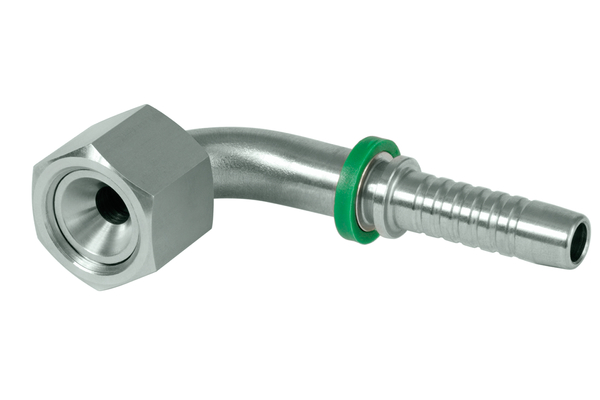

XV14J90S08
DKJ 90° JF 90°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2

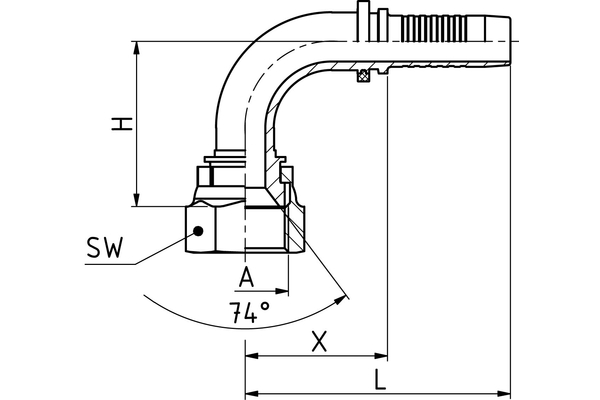

  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
  Connection thread A:	7/8"-14 UNF
  X [mm]:	39,0
  L1 [mm]:	71,5
  H [mm]:	41,0
  SW1 [mm]:	27
  Type of nut:	CR
  Connection name Indunorm:	JF 90°
  Connection type:	DKJ 90°
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
