Art. No.: XV26J90S16
List number: 05335890

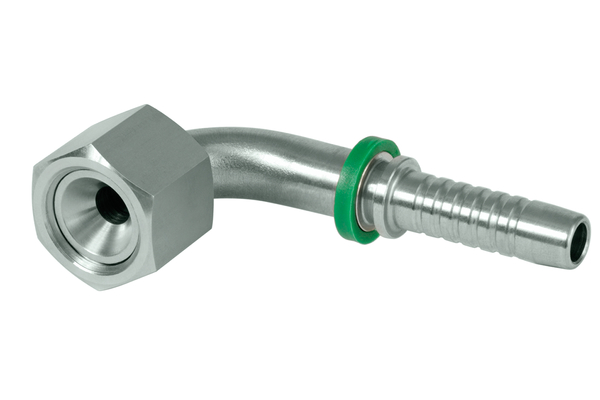

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

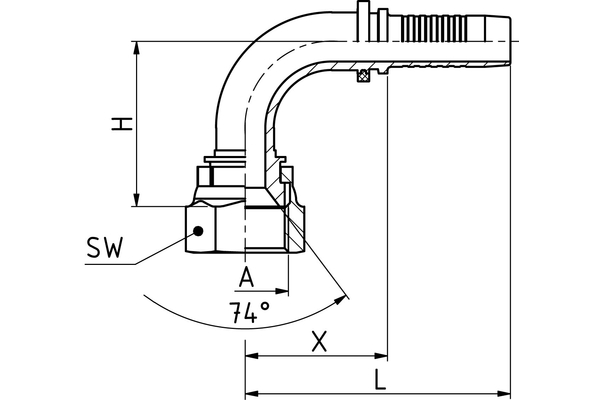

| DN: | 25 |
| Size: | 16 |
| Inch: | 1 |
| Thread + standard: | JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread |
| Connection thread A: | 1.5/8"-12 UN |
| X [mm]: | 72,0 |
| H [mm]: | 71,0 |
| SW1 [mm]: | 50 |
| Type of nut: | CR |
| Connection name Indunorm: | JF 90° |
| Connection type: | DKJ 90° |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Type of fittings: | Universal series XV |
| degree: | 90 |
Reserve technical changes.
