VC02BM04

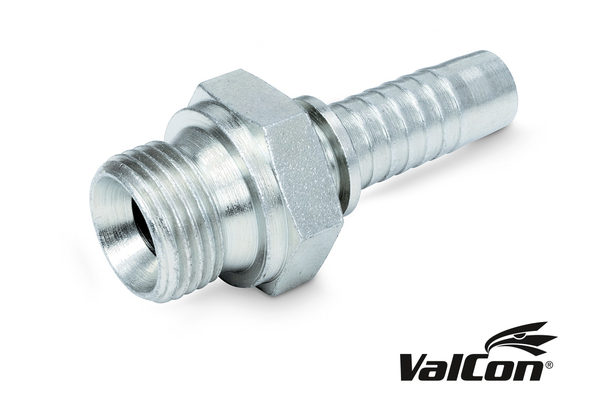

Valcon® swage fitting AGR BM

Product info

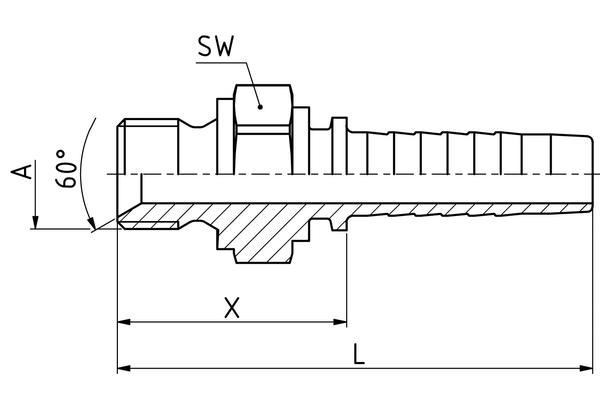

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	BSP-threaded adapter, 60°-cone with BSP male thread
  L1 [mm]:	46,0
  d [mm]:	4,0
  T:	1/8-28
  E [mm]:	14
  C [mm]:	21,0
  L [mm]:	46,0
  Connection name Indunorm:	BM
  Connection type:	AGR
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
