VC08BM06

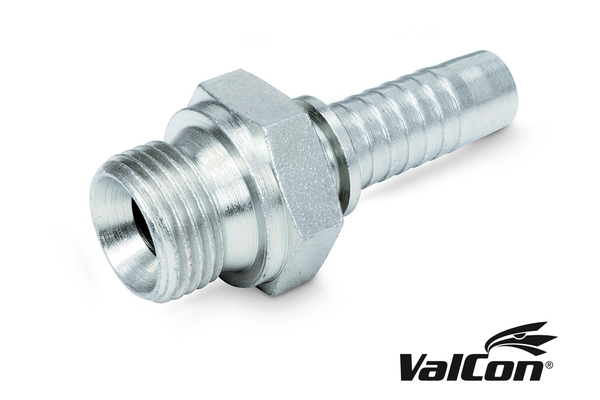

Valcon® swage fitting AGR BM

Product info

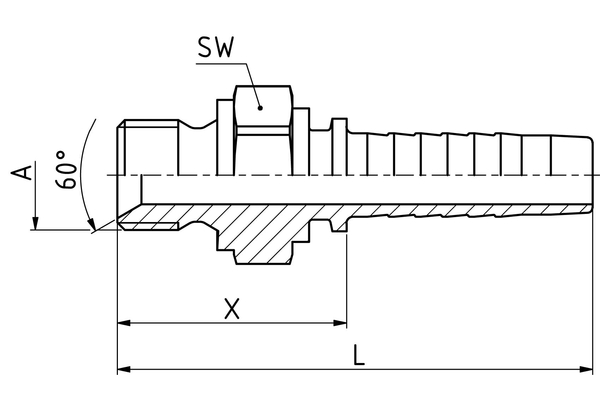

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8"
  Thread + standard:	BSP-threaded adapter, 60°-cone with BSP male thread
  L1 [mm]:	61,5
  d [mm]:	7,0
  T:	1/2-14
  E [mm]:	27
  C [mm]:	32,0
  L [mm]:	61,5
  Connection name Indunorm:	BM
  Connection type:	AGR
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
