VC16BM12

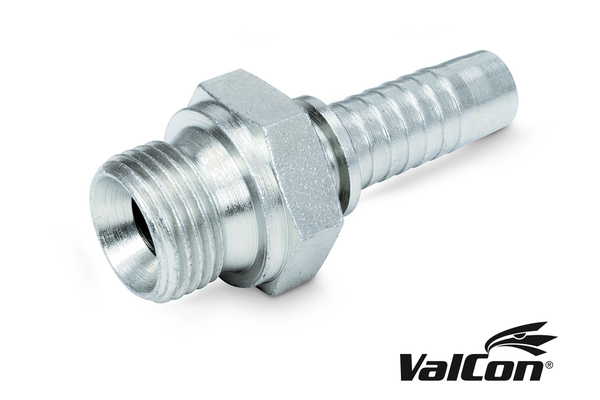

Valcon® swage fitting AGR BM

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4"
  Thread + standard:	BSP-threaded adapter, 60°-cone with BSP male thread

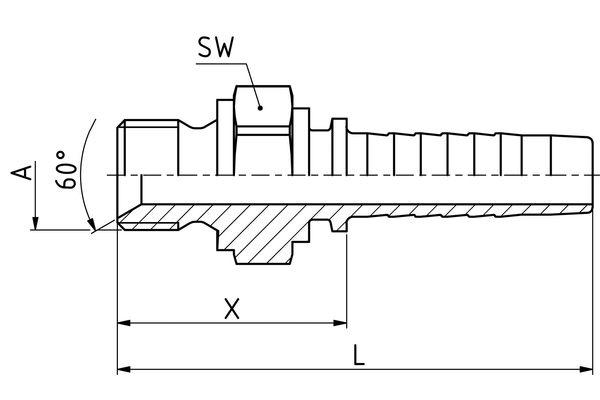

  L1 [mm]:	88,5
  d [mm]:	15,0
  T:	1-11
  E [mm]:	41
  C [mm]:	39,0
  L [mm]:	88,5
  Connection name Indunorm:	BM
  Connection type:	AGR
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
