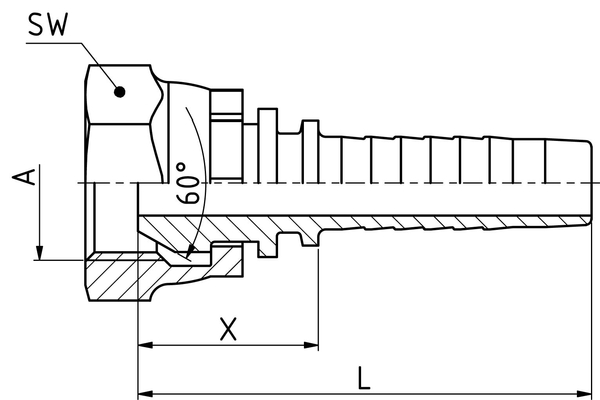

VC02BF04
Valcon® swage fitting DKR BF

Product info

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  d [mm]:	4,0
  T:	1/8-28
  E [mm]:	14
  C [mm]:	16,0
  L [mm]:	41,0
  Connection name Indunorm:	BF
  Connection type:	DKR
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
