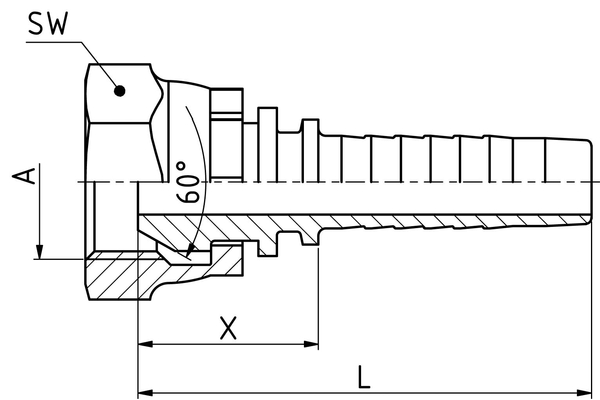

VC04BF05
Valcon® swage fitting DKR BF

Product info

• Technical data

  DN:	8
  Size:	05
  Inch:	5/16"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  d [mm]:	5,5
  T:	1/4-19
  E [mm]:	19
  C [mm]:	18,0
  L [mm]:	45,5
  Connection name Indunorm:	BF
  Connection type:	DKR
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
