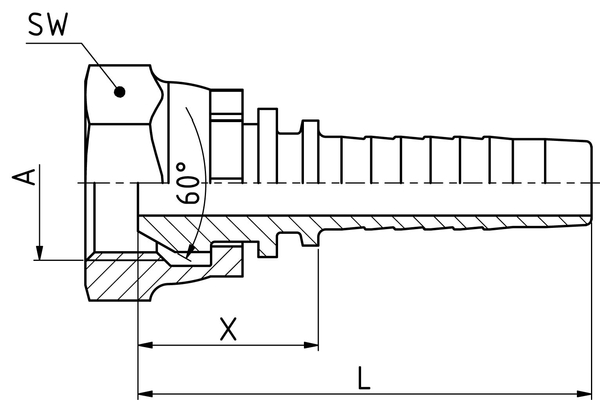

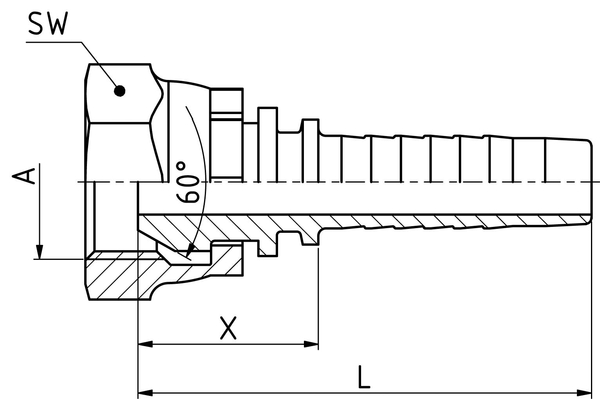

VC12BF08
Valcon® swage fitting DKR BF

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  d [mm]:	9,5
  T:	3/4-14
  E [mm]:	32
  C [mm]:	25,0
  L [mm]:	58,0
  Connection name Indunorm:	BF
  Connection type:	DKR
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
