VC42ME30-16

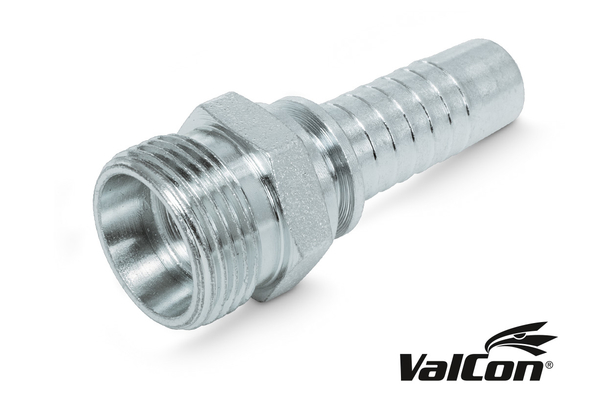

Valcon® swage fitting CES ME

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1"

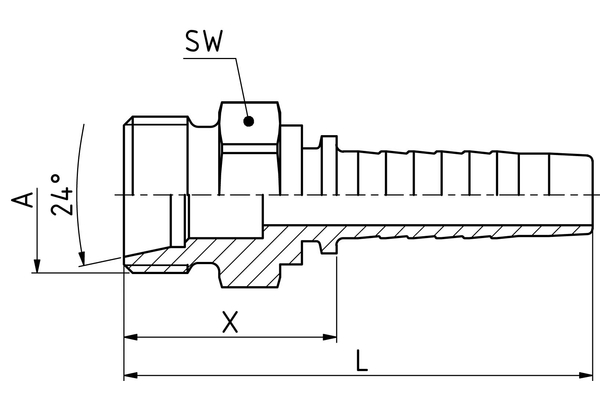

  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
  d [mm]:	20,0
  Pipe E [mm]:	30
  T:	M42-2
  E [mm]:	46
  C [mm]:	42,0
  L [mm]:	95,5
  Connection name Indunorm:	ME
  Connection type:	CES
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
