ValCon® CES

Similar image
Similar image

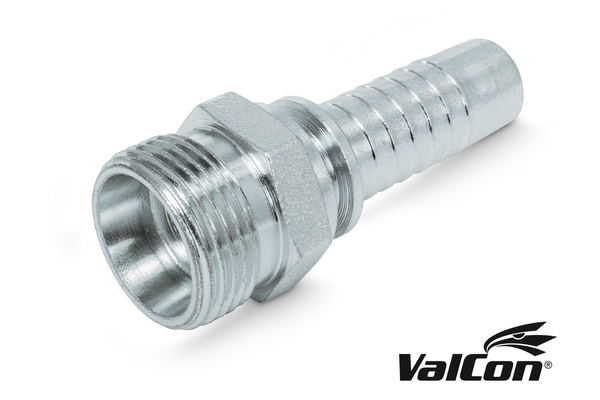

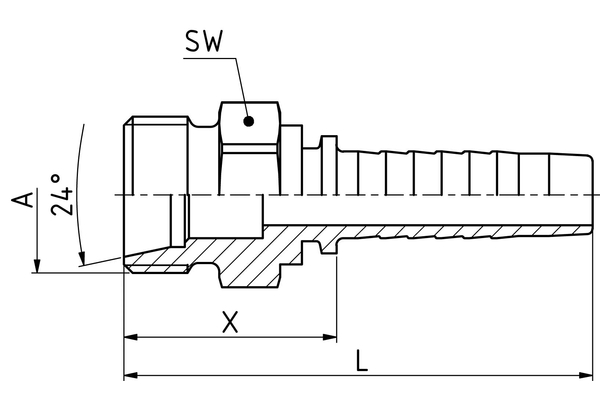

Threaded stem with bore form W (24 °) according to DIN 3861, heavy series

To accessories

Detail

Art. No.
VC18ME10-04
%
SALE
VC20ME12-05
%
SALE
VC22ME14-06
%
SALE
VC24ME16-08
%
SALE
VC30ME20-10
%
SALE
VC36ME25-12
%
SALE
VC42ME30-16
%
SALE
VC16ME08-04
%
SALE
VC20ME12-06
%
SALE
VC24ME16-06
%
SALE
VC30ME20-12
%
SALE
VC36ME25-16
%
SALE
DN
6
8
10
12
16
19
25
6
10
10
19
25
Size
04
05
06
08
10
12
16
04
06
06
12
16
Inch
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
1"
1/4"
3/8"
3/8"
3/4"
1"
Thread + standard
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
d [mm]
4,0
5,5
7,0
9,5
12,0
15,0
20,0
4,0
7,0
7,0
15,0
20,0
Pipe E [mm]
10
12
14
16
20
25
30
8
12
16
20
25
T
M18-1,5
M20-1,5
M22-1,5
M24-1,5
M30-2
M36-2
M42-2
M16-1,5
M20-1,5
M24-1,5
M30-2
M36-2
E [mm]
19
22
22
24
30
36
46
17
22
24
30
36
C [mm]
27,0
29,0
29,0
32,0
34,0
38,0
42,0
25,5
29,0
31,0
35,0
38,5
L [mm]
54,0
56,5
60,5
63,5
68,5
77,5
95,5
52,0
58,5
60,5
84,5
92,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: ME
    Connection type: CES
    Construction form: 0°
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: VC

Practical tip

The pre-assembly of the cutting ring should be carried out using the hardened pre-assembly socket RV..VM L / S. For assembling cutting rings properly, please refer to our installation instructions.
