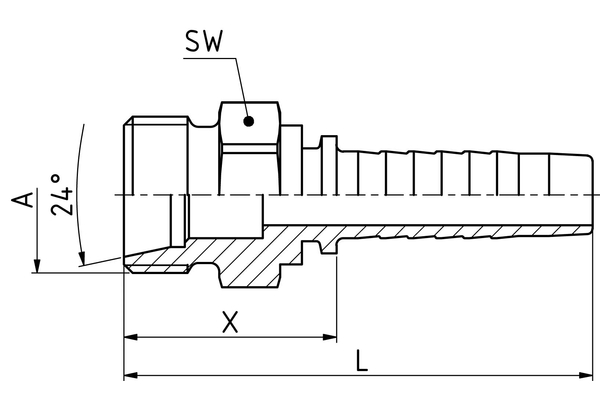

VC24ME16-08
Valcon® swage fitting CES ME

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2"
  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
  d [mm]:	9,5
  Pipe E [mm]:	16
  T:	M24-1,5
  E [mm]:	24
  C [mm]:	32,0
  L [mm]:	63,5
  Connection name Indunorm:	ME
  Connection type:	CES
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
