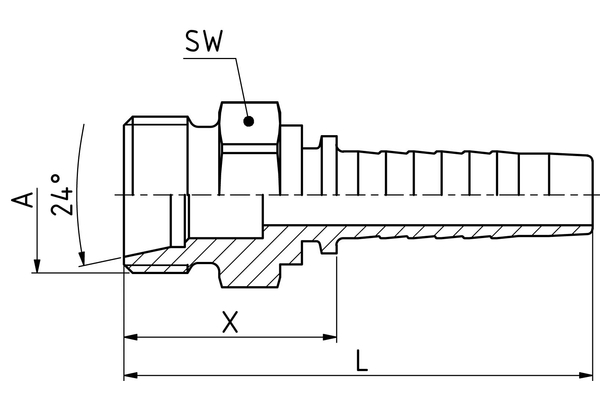

VC20ME12-06
Valcon® swage fitting CES ME

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8"
  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
  d [mm]:	7,0
  Pipe E [mm]:	12
  T:	M20-1,5
  E [mm]:	22
  C [mm]:	29,0
  L [mm]:	58,5
  Connection name Indunorm:	ME
  Connection type:	CES
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
