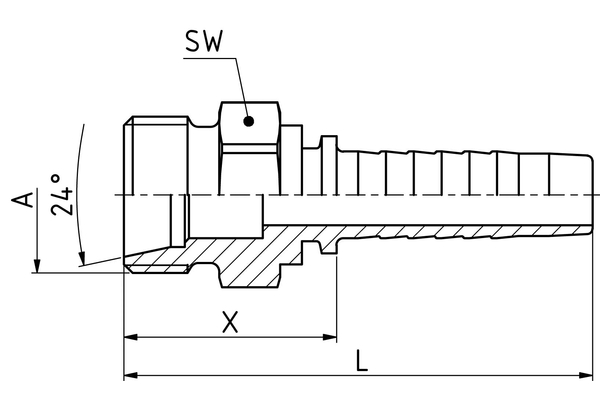

VC30ME20-12
Valcon® swage fitting CES ME

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4"
  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
  d [mm]:	15,0
  Pipe E [mm]:	20
  T:	M30-2
  E [mm]:	30
  C [mm]:	35,0
  L [mm]:	84,5
  Connection name Indunorm:	ME
  Connection type:	CES
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
