VC16MOSE08

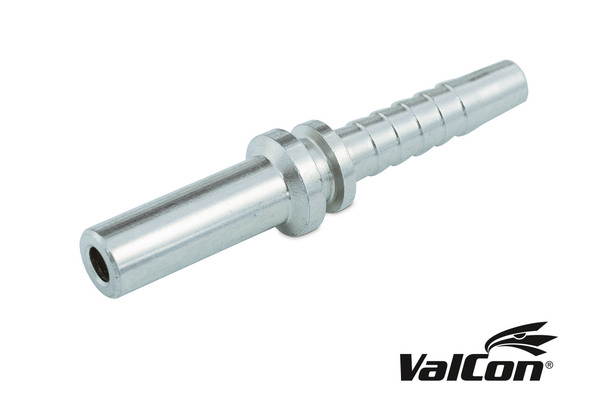

Valcon® swage fitting BEL/BES MOSE

Product info

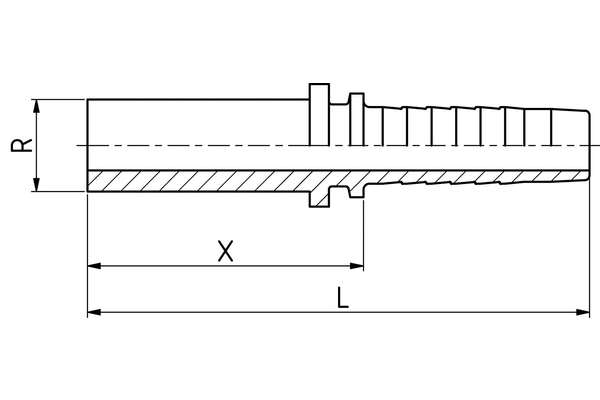

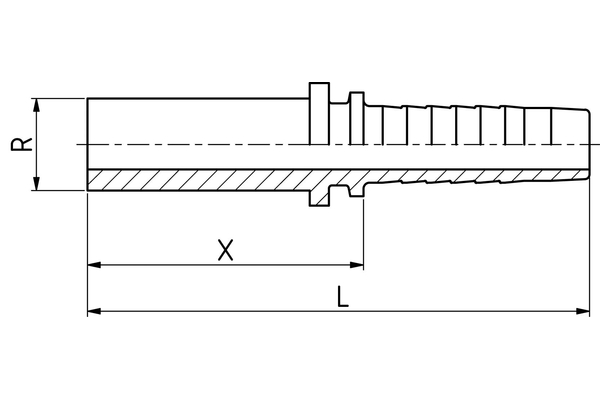

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2"
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut
  Pipe Ø R [mm]:	16
  d [mm]:	9,5
  Type:	S
  Pipe E [mm]:	16
  E [mm]:	9.5
  C [mm]:	38,0
  L [mm]:	69,5
  Connection name Indunorm:	MOSE
  Connection type:	BEL/BES
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
