VC08LORF45S06

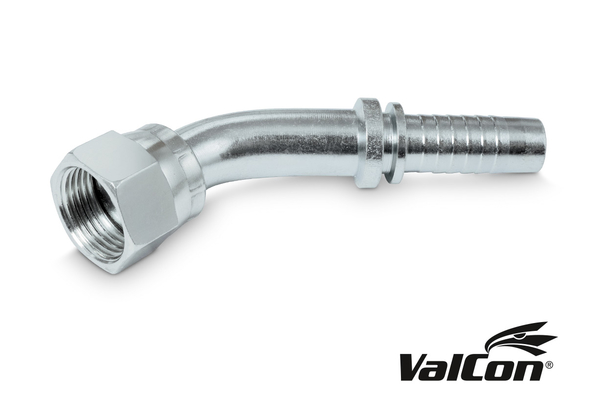

Valcon® swage fitting ORFS 45° with union nut LORF 45°

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8"
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread

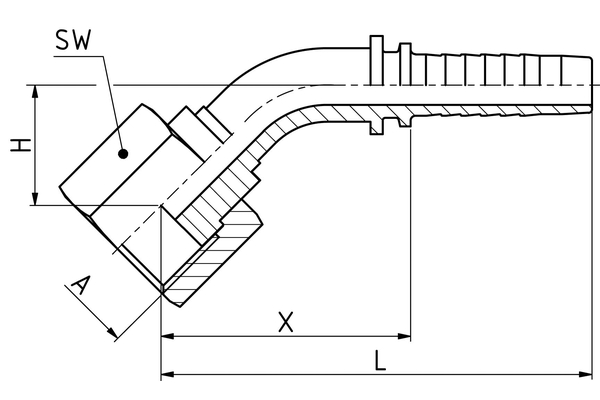

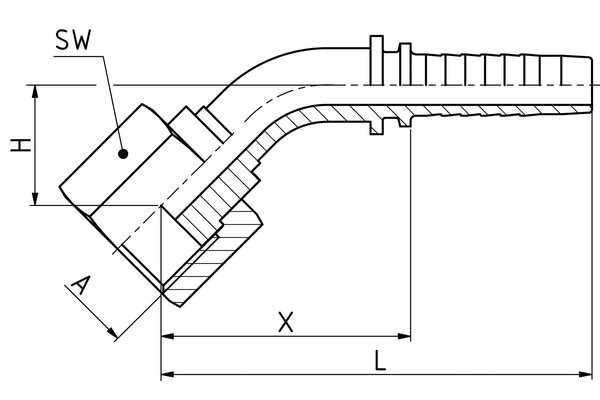

  H [mm]:	17,0
  d [mm]:	7,0
  T:	13/16-16
  E [mm]:	24
  C [mm]:	42,0
  L [mm]:	71,5
  Connection name Indunorm:	LORF 45°
  Connection type:	ORFS 45° with union nut
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
