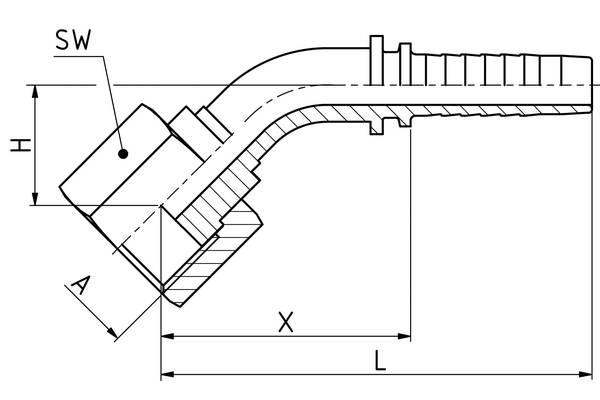

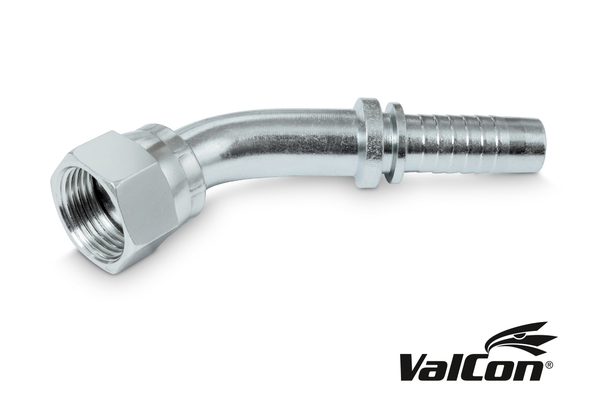

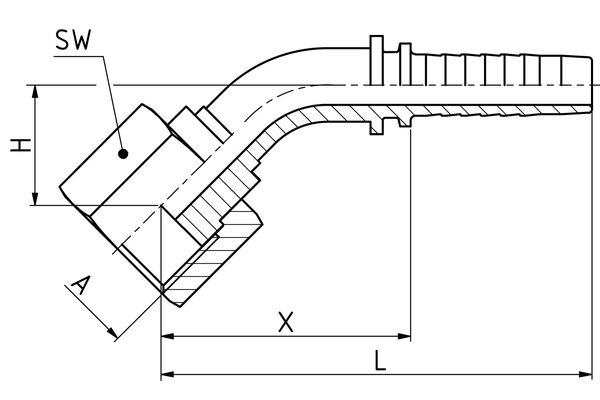

ValCon® ORFS 45° with swivel nut

Similar image
Similar image

ORFS sealing form, with union nut, UN / UNF / UNS-Thread

To accessories

Detail

Art. No.
VC04LORF45S04
%
SALE
VC06LORF45S06
%
SALE
VC08LORF45S08
%
SALE
VC10LORF45S10
%
SALE
VC12LORF45S12
%
SALE
VC16LORF45S16
%
SALE
VC06LORF45S04
%
SALE
VC08LORF45S06
%
SALE
VC10LORF45S08
%
SALE
DN
6
10
12
16
19
25
6
10
12
Size
04
06
08
10
12
16
04
06
08
Inch
1/4"
3/8"
1/2"
5/8"
3/4"
1"
1/4"
3/8"
1/2"
Thread + standard
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
L1 [mm]
63,5
H [mm]
14,0
19,0
18,0
20,0
26,0
27,0
14,0
17,0
20,0
d [mm]
4,0
7,0
9,5
12,0
15,0
20,0
4,0
7,0
9,5
T
9/16-18
11/16-16
13/16-16
1-14
1.3/16-12
1.7/16-12
11/16-16
13/16-16
1-14
E [mm]
17
22
24
30
36
41
22
24
30
C [mm]
38,5
50,0
58,0
55,0
65,0
88,5
36,0
42,0
61,0
L [mm]
67,0
78,5
78,5
91,5
114,5
137,0
63,5
71,5
74,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: LORF 45°
    Connection type: ORFS 45° with union nut
    Construction form: 45°
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: VC
