VC16LORF45S16

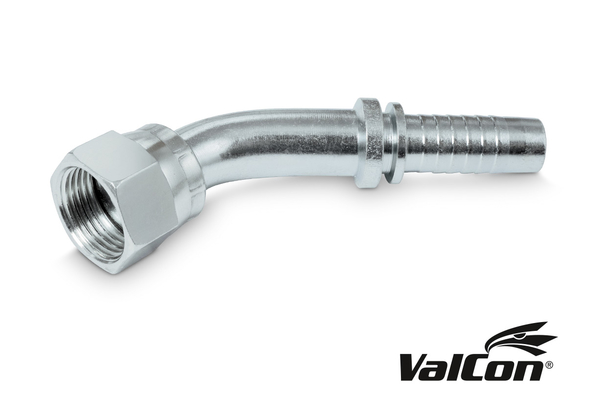

Valcon® swage fitting ORFS 45° with union nut LORF 45°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1"
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread

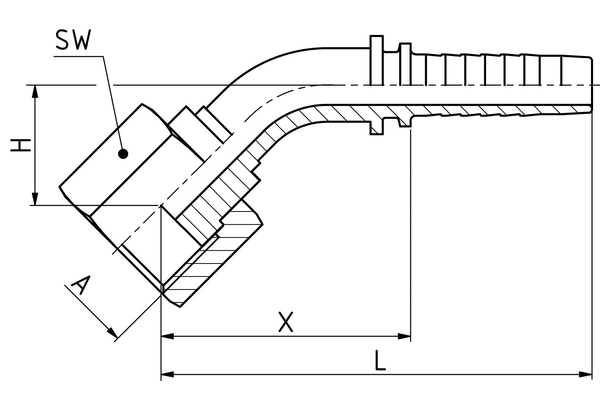

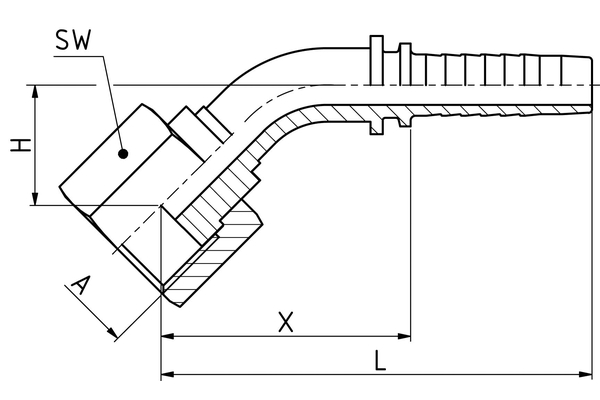

  H [mm]:	27,0
  d [mm]:	20,0
  T:	1.7/16-12
  E [mm]:	41
  C [mm]:	88,5
  L [mm]:	137,0
  Connection name Indunorm:	LORF 45°
  Connection type:	ORFS 45° with union nut
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
