VC08LORF45S08

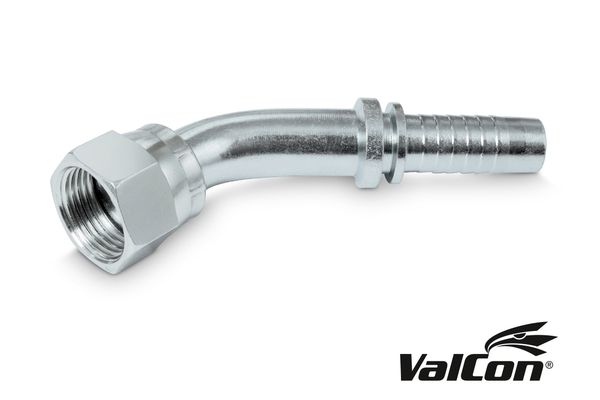

Valcon® swage fitting ORFS 45° with union nut LORF 45°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2"
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread

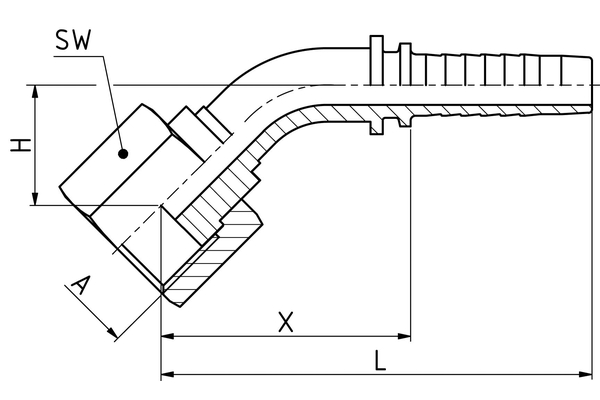

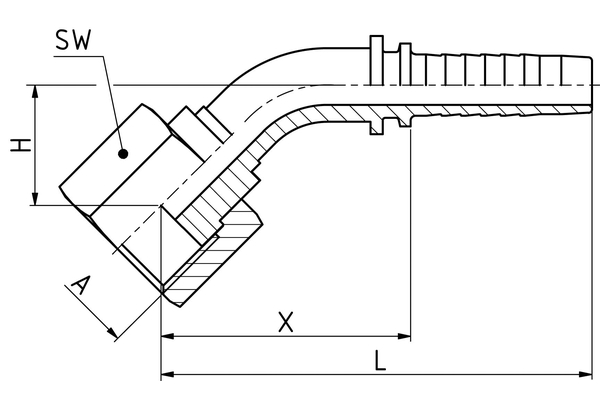

  H [mm]:	18,0
  d [mm]:	9,5
  T:	13/16-16
  E [mm]:	24
  C [mm]:	58,0
  L [mm]:	78,5
  Connection name Indunorm:	LORF 45°
  Connection type:	ORFS 45° with union nut
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
