VC12LORF45S12

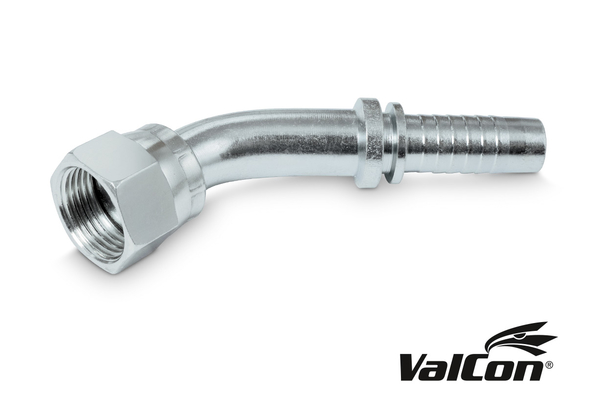

Valcon® swage fitting ORFS 45° with union nut LORF 45°

Product info

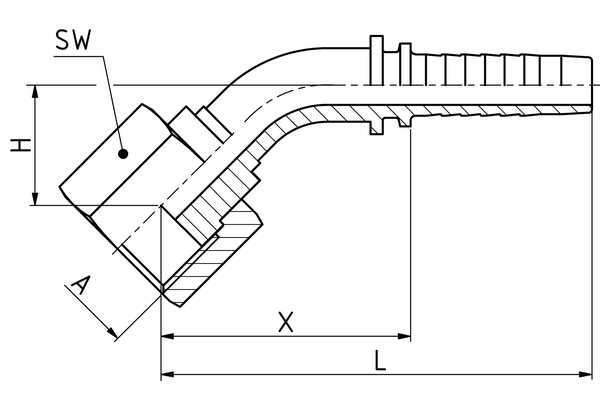

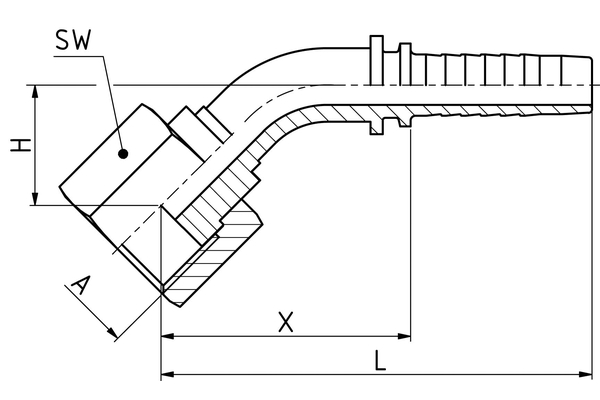

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4"
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread
  H [mm]:	26,0
  d [mm]:	15,0
  T:	1.3/16-12
  E [mm]:	36
  C [mm]:	65,0
  L [mm]:	114,5
  Connection name Indunorm:	LORF 45°
  Connection type:	ORFS 45° with union nut
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
