Product info
-
Technical data

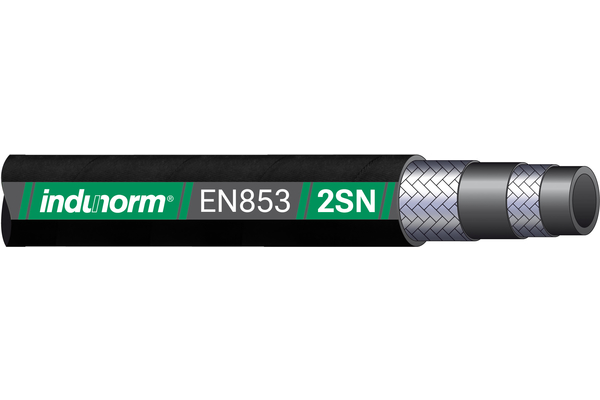

DN: 31 Size: 20 Inch: 1.1/4 bending radius [mm]: 420 working pressure [bar]: 125 burst pressure [bar]: 500 Safety factor: 4:1 Standard ferrule: XVN20 Standard ferrule stainless steel: XP-P8-20VA Weight [kg]: 1,770 Static test pressure [bar]: 250 Outer Ø max. [mm]: 49,5 Color cover: black Color inner tube: Synthetic rubber Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 853 - 2SN Reinforcement: 2 layers of high tensile steel wire braid Temperature range [°C]: - 40 ° C to + 100 ° C application: High pressure applications max operating temperature [°C]: +100°C number of layers: 2
