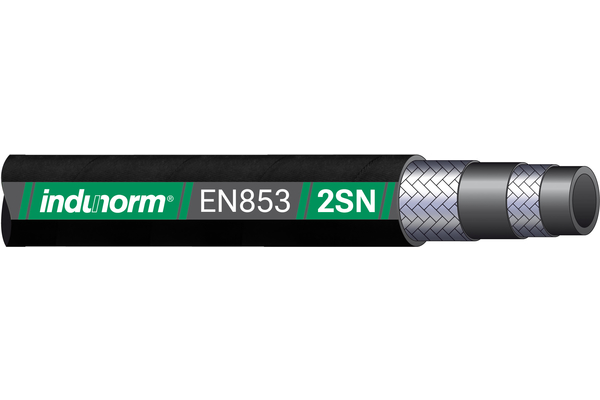

Braided Hose 2SN (EN 853 - 2SN)

Hydraulic hose for high pressure applications, according to EN 853 - 2SN

To accessories

Detail

Art. No.

2SN05

2SN06

2SN08

2SN10

2SN12

2SN16

2SN20

2SN25

2SN32

2SN40

2SN50

Size

Inch

3/16

1/4

5/16

3/8

1/2

5/8

3/4

1.1/4

1.1/2

Inner Ø [mm]

5,1

6,7

13,1

16,2

bending radius [mm]

100

115

130

180

200

240

300

420

500

630

working pressure [bar]

415

400

350

330

275

250

215

165

125

burst pressure [bar]

1650

1600

1400

1320

1100

1000

850

650

500

360

320

Safety factor

4:1

Standard ferrule

XV03D

XVN04

XVN05

XVN06

XVN08

XVN10

XVN12

XVN16

XVN20

XVN24

XVN32

Standard ferrule stainless steel

XP-P5-04VA

XP-P5-05VA

XP-P5-06VA

XP-P5-08VA

XP-P5-10VA

XP-P5-12VA

XP-P5-16VA

XP-P8-20VA

XP-P8-24VA

XP-P8-32VA

Weight [kg]

0,250

0,310

0,370

0,440

0,530

0,660

0,840

1,230

1,770

2,170

2,790

Static test pressure [bar]

830

800

700

660

550

500

430

325

250

180

160

Outer Ø max. [mm]

14,1

15,7

17,3

19,7

23,0

26,2

30,1

38,9

49,5

55,9

68,6

Quantity

Product info

Technical data

Color cover:	black
Color inner tube:	Synthetic rubber
Cover:	Synthetic rubber, wear resistant
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 853 - 2SN
Reinforcement:	2 layers of high tensile steel wire braid
Temperature range [°C]:	- 40 ° C to + 100 ° C
application:	High pressure applications
max operating temperature [°C]:	+100°C
number of layers:	2

Accessories

For special applications with difficult conditions skiving-ferrules are available. For details, please refer to our current crimping-charts. In addition to the swage-fittings, we offer a wide range of screw fittings for manual assembly.
