Product info
-
Technical data

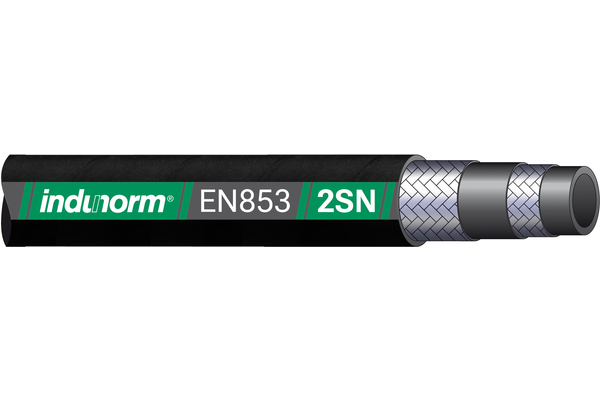

DN: 16 Size: 10 Inch: 5/8 Inner Ø [mm]: 16,2 bending radius [mm]: 200 working pressure [bar]: 250 burst pressure [bar]: 1000 Safety factor: 4:1 Standard ferrule: XVN10 Standard ferrule stainless steel: XP-P5-10VA Weight [kg]: 0,660 Static test pressure [bar]: 500 Outer Ø max. [mm]: 26,2 Color cover: black Color inner tube: Synthetic rubber Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 853 - 2SN Reinforcement: 2 layers of high tensile steel wire braid Temperature range [°C]: - 40 ° C to + 100 ° C application: High pressure applications max operating temperature [°C]: +100°C number of layers: 2
