XVN08
XVN

Product info

• Specifications

  DN:	12
  Size:	08
  Inch:	1/2

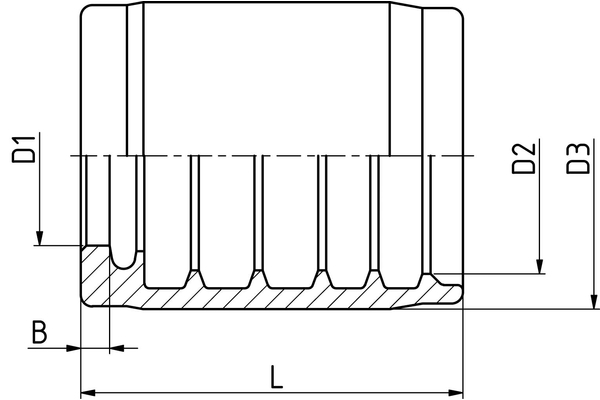

  D2 [mm]:	30,0
  Thread + standard:	Swage ferrule, non-skive, for 1SN, 2SN and 2SC
  L [mm]:	36,0
  b [mm]:	2,5
  D [mm]:	19,2
  D1 [mm]:	23,0
  Connection name Indunorm:	XVN
  Material:	Free cutting steel
  Material:	Free cutting steel
  Resistance against red rust [h]:	500
  Resistance against white rust [h]:	96
  Surface:	ZnNi
  Type of fittings:	Universal series XV
  application:	no-skive ferrule
