XVN

Similar image
Similar image

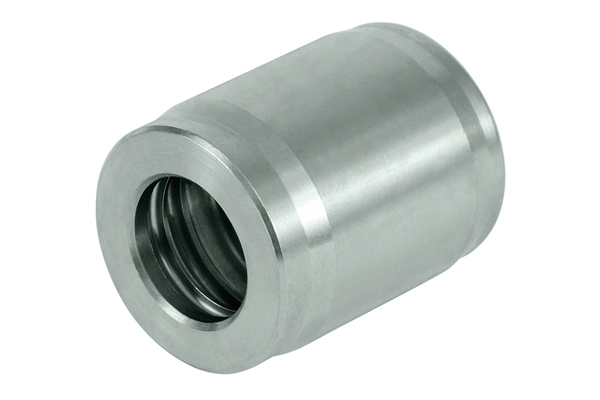

Swage ferrule, non-skive version

To accessories

Detail

Art. No.
XVN04
%
SALE
XVN05
%
SALE
XVN06
%
SALE
XVN08
%
SALE
XVN10
%
SALE
XVN12
%
SALE
XVN16
%
SALE
XVN20
%
SALE
XVN24
%
SALE
XVN32
%
SALE
DN
06
08
10
12
16
19
25
31
38
51
Size
04
05
06
08
10
12
16
20
24
32
Inch
1/4
5/16
3/8
1/2
5/8
3/4
1
1.1/4
1.1/2
2

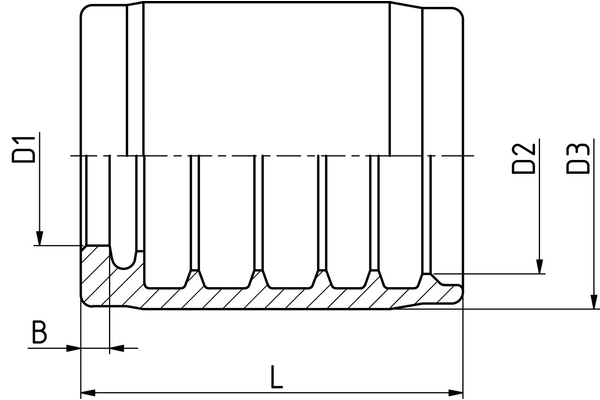

D2 [mm]
21,0
22,5
26,5
30,0
34,0
38,0
47,0
57,0
65,0
78,0
Thread + standard
Swage ferrule, non-skive, for 1SN, 2SN and 2SC
Swage ferrule, non-skive, for 1SN, 2SN and 2SC
Swage ferrule, non-skive, for 1SN, 2SN and 2SC
Swage ferrule, non-skive, for 1SN, 2SN and 2SC
Swage ferrule, non-skive, for 1SN, 2SN and 2SC
Swage ferrule, non-skive, for 1SN, 2SN and 2SC
Swage ferrule, non-skive, for 1SN, 2SN and 2SC
Swage ferrule, non-skive, for 1SN, 2SN and 2SC
Swage ferrule, non-skive, for 1SN, 2SN and 2SC
Swage ferrule, non-skive, for 1SN, 2SN and 2SC
L [mm]
31,0
31,0
33,0
36,0
38,0
44,0
52,0
60,0
73,0
80,0
b [mm]
2,5
2,5
2,5
2,5
2,5
3,0
3,7
4,0
4,3
4,3
D [mm]
11,8
13,2
15,5
19,2
22,5
25,5
32,8
40,5
46,6
58,9
D1 [mm]
15,7
17,3
19,8
23,0
26,2
30,1
38,8
49,3
55,8
68,5
Quantity


Product info

  • Technical data
    Connection name Indunorm: XVN
    Material: Free cutting steel
    Material: Free cutting steel
    Resistance against red rust [h]: 500
    Resistance against white rust [h]: 96
    Surface: ZnNi
    Type of fittings: Universal series XV
    application: no-skive ferrule

Benefit

Skiving of the hoses is not required. Reduced workload at the highest quality
