XVN16
XVN

Product info

• Technical data

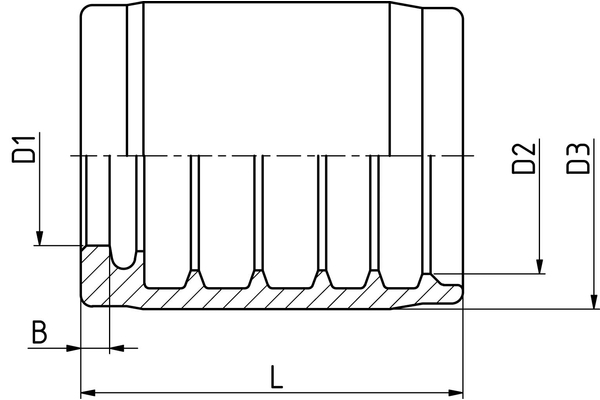

  DN:	25
  Size:	16
  Inch:	1
  D2 [mm]:	47,0
  Thread + standard:	Swage ferrule, non-skive, for 1SN, 2SN and 2SC
  L [mm]:	52,0
  b [mm]:	3,7
  D [mm]:	32,8
  D1 [mm]:	38,8
  Connection name Indunorm:	XVN
  Material:	Free cutting steel
  Material:	Free cutting steel
  Resistance against red rust [h]:	500
  Resistance against white rust [h]:	96
  Surface:	ZnNi
  Type of fittings:	Universal series XV
  application:	no-skive ferrule
