XVN05
XVN

Product info

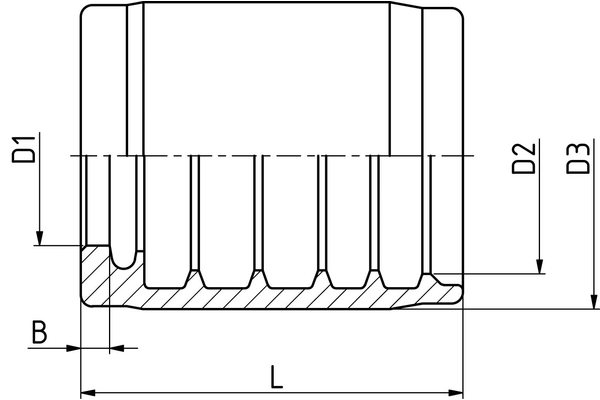

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16
  D2 [mm]:	22,5
  Thread + standard:	Swage ferrule, non-skive, for 1SN, 2SN and 2SC
  L [mm]:	31,0
  b [mm]:	2,5
  D [mm]:	13,2
  D1 [mm]:	17,3
  Connection name Indunorm:	XVN
  Material:	Free cutting steel
  Material:	Free cutting steel
  Resistance against red rust [h]:	500
  Resistance against white rust [h]:	96
  Surface:	ZnNi
  Type of fittings:	Universal series XV
  application:	no-skive ferrule
