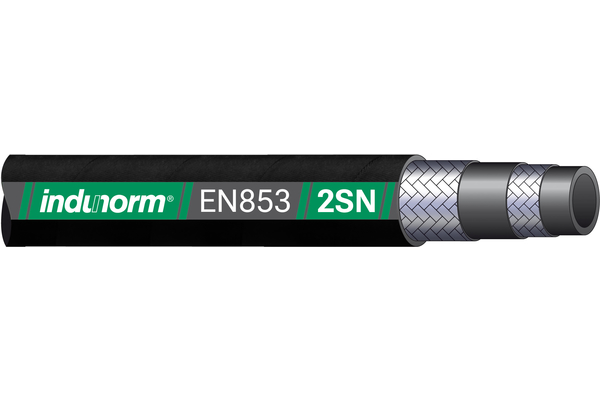

2SN10
Braided hose 2SN

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  bending radius [mm]:	130
  working pressure [bar]:	330
  burst pressure [bar]:	1320
  Safety factor:	4:1
  Standard ferrule:	XVN06

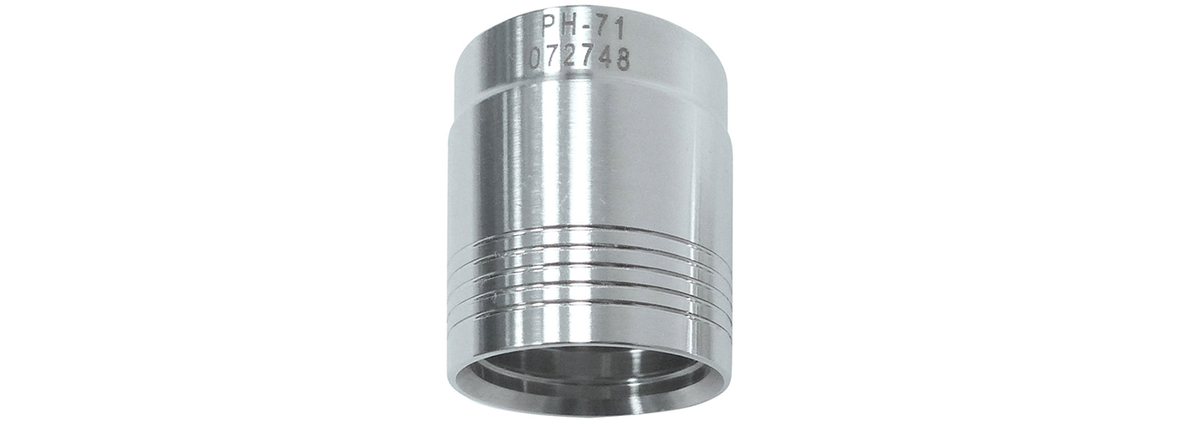

  Standard ferrule stainless steel:	XP-P5-06VA
  Weight [kg]:	0,440
  Static test pressure [bar]:	660
  Outer Ø max. [mm]:	19,7
  Color cover:	black
  Color inner tube:	Synthetic rubber
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 853 - 2SN
  Reinforcement:	2 layers of high tensile steel wire braid
  Temperature range [°C]:	- 40 ° C to + 100 ° C
  application:	High pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	2
