Product info
-
Technical data

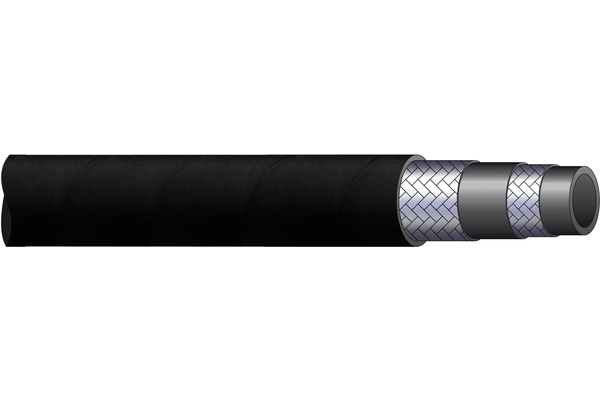

DN: 08 Size: 05 Inch: 5/16 Outer Ø [mm]: 16,5 Inner Ø [mm]: 8,0 bending radius [mm]: 115 working pressure [bar]: 350 burst pressure [bar]: 1400 Safety factor: 4:1 Weight [kg]: 0,455 Static test pressure [bar]: 700 Outer Ø max. [mm]: 17,3 Approvals: Note: There are no joint-fit (@) system tests for this article. Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant, black Inner tube: Synthetic rubber, black MSHA-Approval: no Media: Mineral and synthetic oils Norm/Standards: EN 853 - 2SN Note: short-term up to 150 ° C Reinforcement: 2 layers of high tensile steel wire braid Temperature range [°C]: - 40 ° C to + 135 ° C application: oil hydraulic up to 150°C max operating temperature [°C]: short-term up to 150 ° C number of layers: 2
