SP2PLUS2-08

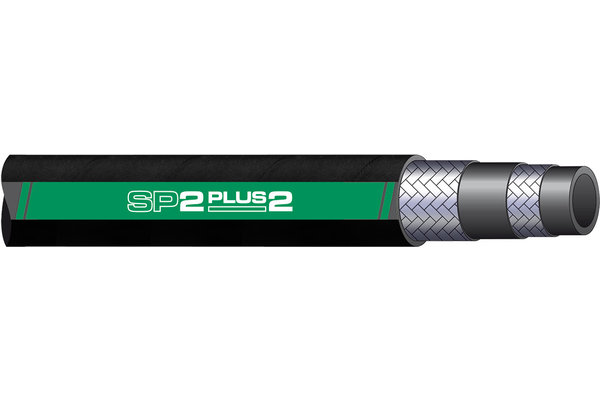

Braided hose SP2plus2

Product info

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16
  Outer Ø [mm]:	15,0
  Inner Ø [mm]:	8,3
  bending radius [mm]:	60
  working pressure [bar]:	440
  burst pressure [bar]:	1760
  Safety factor:	4:1
  Standard ferrule:	XV05C

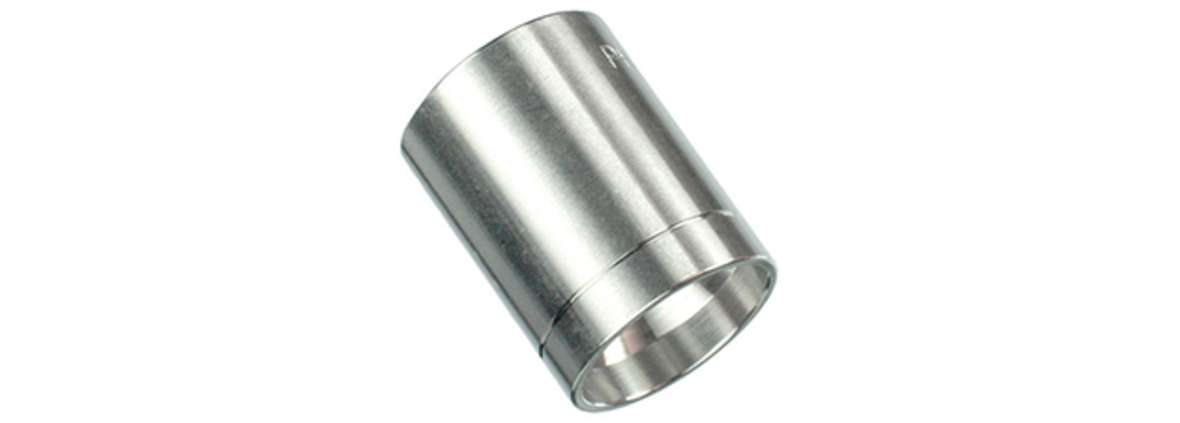

  Standard ferrule stainless steel:	XP-P1-05VA
  Weight [kg]:	0,31
  Static test pressure [bar]:	880
  Outer Ø max. [mm]:	16,0
  Braid diameter [mm]:	13,1
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Oil resistant synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EXCEEDS EN 857 - 2SN
  Reinforcement:	High tensile steel wire braid
  Temperature range [°C]:	- 40 ° C to + 100 ° C short-term + 120 ° C; Water and water-based media up to max. + 70 ° C
  application:	High pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	2
