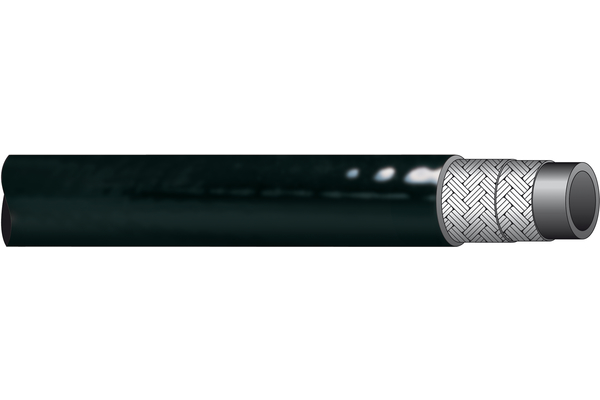

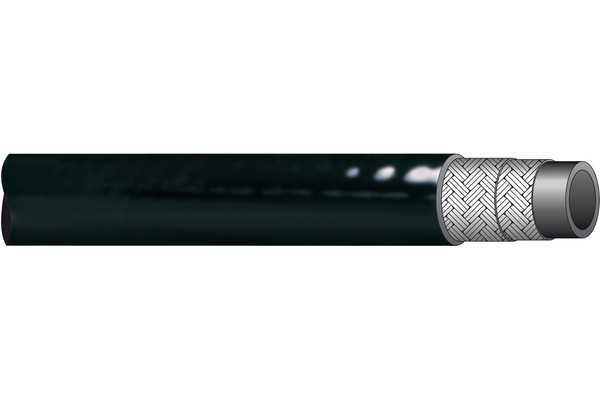

TP-R18 (according to SAE 100 R18)

Thermoplastic hose for the medium pressure range, particularly suitable for high temperature differences such. in cold stores and for forklift use, exceeds the requirements of SAE 100 R18. Precision control of your hydraulics even at changing temperatures under maximum working pressure due to high pulse strength and low expansion of Indunorm TP hoses. Our TP hoses are characterized by high weather and age resistance as well as abrasion resistance.

To accessories

Detail

Art. No.

TP-R18-05

TP-R18-10

TP-R18-12

Size

Inch

3/16

3/8

1/2

Outer Ø [mm]

9,6

16,6

22,5

Inner Ø [mm]

5,0

9,7

13,0

bending radius [mm]

working pressure [bar]

210

burst pressure [bar]

840

Safety factor

4:1

Standard ferrule

XV03R1

XVTE06

XVTE08

Weight [kg]

0,060

0,165

0,295

Static test pressure [bar]

420

Vacuum [bar]

0,93 bar; 700 mm Hg|-13,5 psi; 27,5 inch Hg

Quantity

Product info

Technical data

Color cover:	black
Color inner tube:	black
Cover:	Specialpolyester, black, pin pricked
Inner tube:	Seamless extruded polyester tube (PEL)
MSHA-Approval:	no
Media:	water and water-based media up to max. + 70 ° C; Mineral oils and fluids based on phosphate ester-based hydraulic fluids, gas applications (does not apply to flammable gases, oxygen and LPG)
Norm/Standards:	SAE 100R18 // ISO3949-R18
Reinforcement:	2 layers of Polyester fiber (DN5 1 layer)
Temperature range [°C]:	- 55 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C; Mineral oils and fluids based on phosphate ester-based hydraulic fluids, gas applications *
max operating temperature [°C]:	+100°C
number of layers:	DN05 = 1 layer, DN06-12 = 2 layers

Benefit

Especially used with forklifts or working platforms, which are operated in cold stores. For applications with changing ambient temperatures this special hose is the superior alternative product. Better bend radius as R7 and R8 hoses. Therefore, very suitable for pulleys on forklift masts.

Practical tip

Recommended for Linde forklifts due to appropriate outer diameter of the hose. Please separate twin hoses only as far as it seems to be necessary for assembling.
