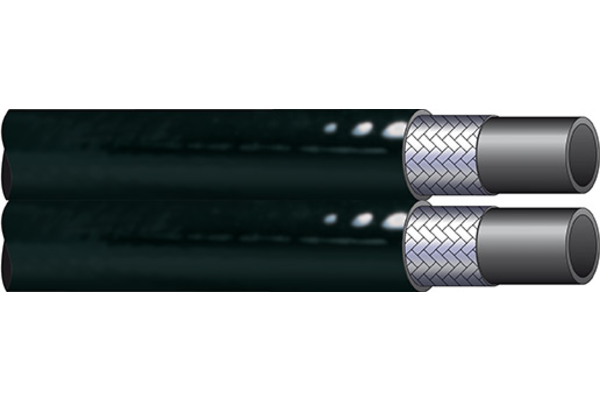

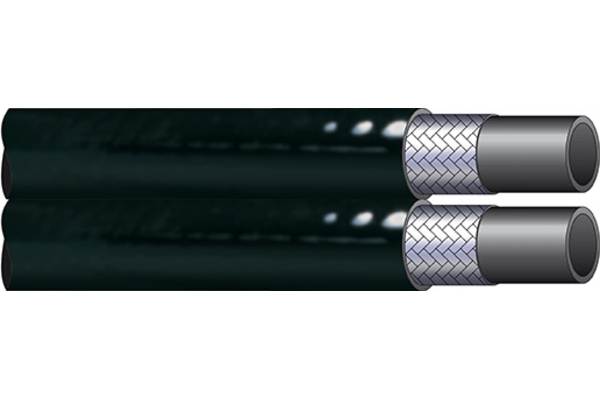

TP-R8-Z06
Hose with pressure level according to SAE 100 R8 TP-R8-Z

Art. No.: TP-R8-Z06

List number: 26061150

hose for high pressure applications, according to SAE 100 R8. Accurate control of your hydraulic system through maximum working pressure of the TP hoses. Our TP hoses are characterized by high resistance to weathering, aging and abrasion.

To accessories

Product info
Benefit

Product info

Technical data

DN:	06
Size:	04
Inch:	1/4
Outer Ø [mm]:	11,5
Inner Ø [mm]:	6,5
bending radius [mm]:	50
working pressure [bar]:	350
burst pressure [bar]:	1400
Safety factor:	4:1
Standard ferrule:	XV04R1
Weight [kg]:	0,200
Static test pressure [bar]:	700
Vacuum [bar]:	0,93 bar; 700 mm Hg\|-13,5 psi; 27,5 inch Hg
Color cover:	black
Cover:	Polyurethan, pin pricked
Inner tube:	Seamless extruded polyester tube (PEL)
Media:	Mineral oils and fluids based on phosphate ester-based hydraulic fluids, gas applications (does not apply to flammable gases, oxygen and LPG).
Norm/Standards:	SAE 100R8 // EN855-R8 // ISO3949-R8
Reinforcement:	One or two braids of aramid fiber / kevlar fiber
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
number of layers:	1/2
