TP-R8-06NC

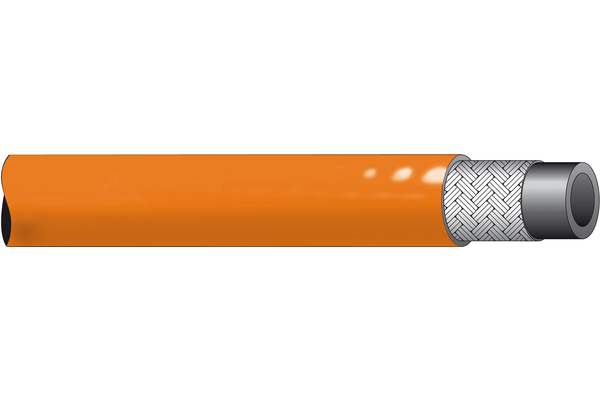

Hose with pressure level according to SAE 100 R8 TP-R8NC

Art. No.: TP-R8-06NC

List number: 26055150

Non-Conductive Thermoplastic hose for high pressure applications, according to SAE 100 R1. Accurate control of your hydraulic system through maximum working pressure of the TP hoses. Our TP hoses are characterized by high resistance to weathering, aging and abrasion. Not suitable for gas applications.

To accessories

Product info

Technical data

DN:	06
Size:	04
Inch:	1/4
Outer Ø [mm]:	11,5
Inner Ø [mm]:	6,5
bending radius [mm]:	50
working pressure [bar]:	350
burst pressure [bar]:	1400
Safety factor:	4:1
Standard ferrule:	XV04R1
Weight [kg]:	0,085
Static test pressure [bar]:	700
Vacuum [bar]:	0,93 bar; 700 mm Hg\|-13,5 psi; 27,5 inch Hg
Approvals:	MSHA IC-305
Color cover:	orange
Color inner tube:	black
Cover:	Polyurethan, non-conductive
Inner tube:	Seamless extruded polyester tube (PEL)
MSHA-Approval:	yes
Media:	Mineral oils and fluids based on phosphate ester-based hydraulic oils
Norm/Standards:	SAE 100R8 // EN855-R8 // ISO3949-R8.
Reinforcement:	One or two braids of aramid fiber / kevlar fiber
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
max operating temperature [°C]:	+100°C
number of layers:	1/2
