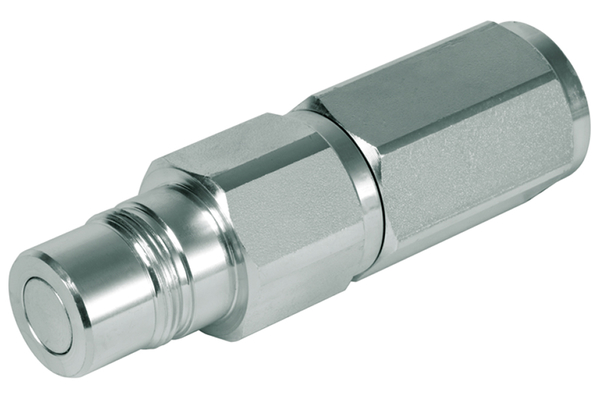

MST3E-H22CEL15-10S
Coupling insert Cr III 3P

Product info

• Technical data

  DN:	10
  Size:	06
  working pressure [bar]:	250
  Thread + standard:	CE male thread light Seriess, DIN 3861
  Thread [GA]:	M22x1,5
  Pipe Ø R [mm]:	15L
  Series:	3P
  Manufacturer ID number:	KIT3FNP38-2/2215 M
  l/min at ΔP=2 bar:	DN 10: 40l/min
  Applications:	industry, agricultural technology , power units, construction machines

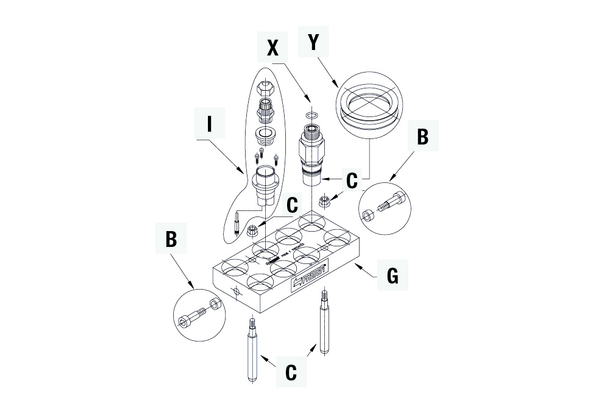

  Designation:	X
  Material:	Aluminum & Steel
  Material sealing:	NBR & PUR
  Note:	Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version.
  Product title long:	Series MST-PB.
  Product title short:	hydraulic insert
  Resistance against red rust [h]:	500
  Surface:	zinc plated, chrom 6-free
  Temperature range [°C]:	-25°C /+100°C
